Bafang BBS01 250w Review

In this Bafang BBS01 250w review, I will be going over the pros and cons of this tried and tested mid-drive conversion kit – this is the only variant I can recommend for road legal use in the UK,  EU and Australia. I will be reviewing the more powerful variants later.

At the bottom of this post there are links on where to buy the Bafang BBS01B 250w kit.

Bafang are currently the global leader in plug and play mid-drive electric bike conversion kits, and have been for a number of years. Earlier versions were plagued by reliability issues, and although this can still be an issue, the problem is not as bad as it was a couple of years ago.

I have personally installed over a hundred of these kits on to various bikes, ranging from low-step commuter bikes through to full-suspension mountain bikes.

Bafang bbs01 250w mid drive motor diagram

The main criteria for installation is the size of the bike’s bottom bracket. It needs to be a standard 68mm-73mm wide bottom bracket with an inside diameter of approximately 33.5mm. It must be noted that these kits are not intended to be installed on bikes that use a pressed-fit bottom bracket, as the dimensions are not compatible with the motor unit. There can be a way around this if a special shim and mounting plate are machined by a professional engineer.

If your bike has an eccentric bottom bracket as fitted to tandems and bike’s with internally geared hubs like the Shimano Nexus, installation is still possible, but may be problematic.

The motor comes as a kit with the following key components:

  • The motor unit with integrated controller
  • LCD Display
  • Wiring loom
  • Inner and outer lock-nuts
  • Chainring
  • Chainguard (BBS01 and BBS02)
  • Thumb throttle – I do not recommend fitting this, as it is unnecessary and will increase the risk of controller failure if used inappropriately.
  • Brake levers with cut-off sensors (only compatible with cable brakes)
  • Speed sensor and wheel magnet
  • A bag of various Allen bolts and screws

bafang bbs01b 36v 250w electric bike kit

Legal information

Please read my separate article on electric bike law here.

Installation

If you are looking for a nice easy conversion to do yourself, but you have little or no experience with bicycle mechanics or using tools, I would not recommend this kit. See my guide on how to install a Bafang BBS02  This also covers the BBS01 which is physically the same.  The installation will need to be carried out by someone who is fairly competent. Removing the bottom bracket can be a right pain, and you will require a lot of patience!

The Bafang BBS01B 36v 250w fitted to a HP Velotechnik Recumbent bike

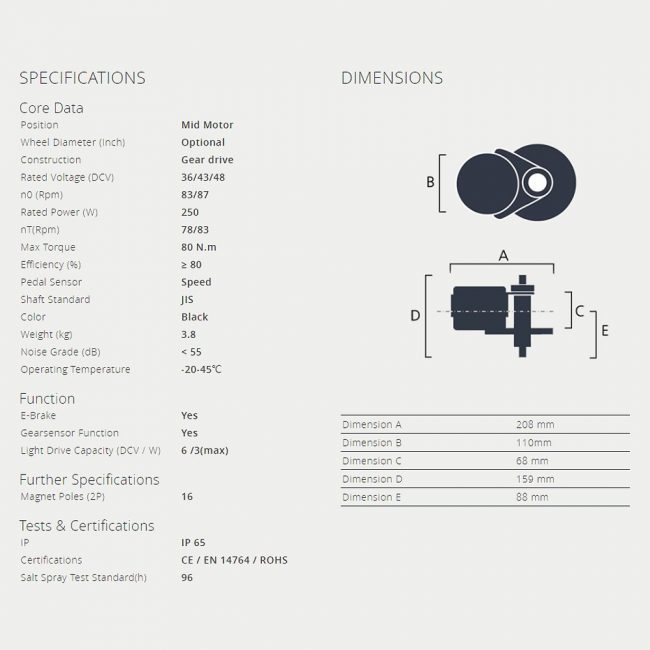

Technical Data

These motors have an internal cadence sensor, and give assist based on pedalling cadence. The controller will reduce the power in any given power level based on pedalling rpm. This is called the keep current, and depending on the way your particular controller is programmed, this can reduce the power by up to 60%. The logic behind this is the higher the cadence, the less help you need, this is somewhat counter-intuitive as electric motors works best when spinning at a high rpm.

One great thing about these motors, is they can be programmed with a Bafang programming lead and software (which you can download for free here). I will be writing a separate post about programming the Bafang. PLEASE NOTE: Reprogramming the 250w motor to any higher than 15A and 15.5mph (25km/h) would make it illegal for road use in the UK / EU / AU.bafang bbs01 250w mid drive motor diagram

The motor itself works through a series of gears, and drives the rear wheel directly through a single front chainring. The benefit of this is the motor is using the bike’s gear ratios for maximum efficiency and torque. The downside of this is you have to make sure you are in the right gear when hill climbing as excess load on the motor can cause controller failure.

The 250w motor is very quiet and smooth, and you have up to 9 levels of pedal assist to choose from.

Reliability

I have installed many BBS01B 250w Bafang motors and to date, and I haven’t had any issues reported – these seem to be confined to the more powerful variants. Having said that there are a number of things to consider.

  • Although I haven’t had any issues with the 250w, they can and do occur from time to time.
  • Controller failure is rare on this model nowadays, especially since Bafang upgraded the MOSFET’s in the controller.
  • You will need a Bafang lock-ring spanner – these motors do sometimes need to be re-tightened periodically.
  • The speed sensor can be easily knocked out of alignment with the wheel magnet – this will throw up an error code and pedal assist will stop working.
  • Some of the colour displays can be unreliable – I find the black and white C965 display to be the best, I have had several issues with the colour display.
  • Increased wear and tear on the bike chain and gear components – this can be mitigated by fitting a Bafang gearshift sensor.

Riding a Bafang powered Electric Bike



bafang bbs01b 36v 250w fitted to a mountain bike

The 250w motor is very quiet and smooth, and you have up to 9 levels of pedal assist to choose from, so you really can fine tune the power output to suit your needs. When climbing step hills you will need to make sure you are in a low gear (as you would be in a car or on a motorcycle) this is especially important as trying to climb a hill in a high gear will put the motor under excess load and could overheat, causing controller failure.

The pedal assist is responsive, and works well, although on some of the older units, there was always a slight over-run noticeable when pedalling stopped. This was down to one of the controller programming parameters being set too high. I always reprogrammed the unit to stop this issue.

The main downside, in my opinion is the extra pedalling resistance this motor has when the power is on ‘0’ or the motor is switched off altogether. It is not too bad on the flat, but it is really noticeable when going up a slight gradient. This is the main reason, I tend to prefer small geared hub motors.

If your bike has a double or triple front chainset, then you will be sacrificing that for a single steel chainring. Bafang only offer a 44t, 46t and 48t option. This in my opinion is high gearing, especially if you are climbing lots of steep hills. There are however aftermarket chainrings available.

If you want to fit the brake levers with cut-off sensors, then bare in mind these are only suitable for cable operated brakes. If your bike has hydraulic brakes, you may want to purchase hydraulic brake cut off sensors or completely new hydraulic brakes with the sensors already built in.

Conclusion

The Bafang mid drive motor is not for everyone. Installation can be challenging and the motor will need periodic maintenance. It is nonetheless an excellent option, and the end result will be a bike that looks more like a factory produced ebike.



bafang bbs01 250w fitted to a ladies mountain bike

For a 250w motor it produces a lot of torque, I have done a side by side hill climb comparison of the Bafang 250w vs a 1000w hub motor and the Bafang out performed the larger, more powerful hub motor. The large direct drive hub motor was only rated at 35nm of torque compared to the Bafang’s 80nm.

If you are comfortable with your ability to install it, and you have an appropriate donor bike, then as long as you can live with some of the compromises, this is still one of the best electric bike kits available.

Below are some links to suppliers of the Bafang BBS01B 250w.

Bafang BBS01B 36v 250w complete kit with optional battery
Buy from Aliexpress GLOBAL SHIPPING
Buy from Amazon UK
Achat d'Amazon France
Acquista da Amazon Italia
Please follow and like us:

Bafang BBS01B 250w Mid Drive

8.2

Value for Money

8.0/10

Ease of Installation

6.0/10

Reliability

8.0/10

Efficiency

10.0/10

Performance

9.0/10

Pros

  • Very efficient
  • Excellent performance
  • Fits most bikes
  • Programmable
  • Great for hill climbing

Cons

  • Can be difficult to install for the inexperienced
  • Requires regular maintenance
  • Some potential long term reliability issues
  • Limited choice of Chainrings
  • Harder to pedal when assist is not on

30 thoughts on “Bafang BBS01 250w Review

  • December 30, 2018 at 7:37 pm
    Permalink

    Value for Money

    0

    Ease of Installation

    0

    Reliability

    0

    Efficiency

    8.5

    Performance

    0

    Brilliant website! The world needs more people like this before we totally ruin the planet…. Keep it up, much respect!

    Reply
  • December 31, 2018 at 12:22 am
    Permalink

    Hi Ken,

    Thanks for the great comment!

    E-bikes are definitely going to increase in popularity. We just need more investment in cycling infrastructure in this country.

    Have a great 2019!

    All the best,
    Tony

    Reply
    • January 3, 2019 at 3:31 pm
      Permalink

      Value for Money

      10

      Ease of Installation

      10

      Reliability

      9.5

      Efficiency

      10

      Performance

      9.5

      Tony converted my giant ATX mountain bike to an e-bike. On Tony’s advice I opted for the bafang BBS01 250w motor, I use my motor as assist only as I still wanted to do most of the work. Tony did a neat and tidy job, the motor has been brilliant with no problems, I enjoy my bike rides more now, as I go out in all conditions. Tony is a trustworthy person, if I have any problems I know he is only a phone call away. I travelled a round trip of 840 miles in 20 hours for Tony to do the installation – Sunderland to Cornwall. I have no regrets and the bike is brilliant. Many thanks Tony, keith.

      Reply
      • January 3, 2019 at 4:00 pm
        Permalink

        Hi Keith,

        Thank you for your positive comments. I hope you continue to enjoy your bike. If you ever need any help or advice, give me a call.

        Cheers,
        Tony

        Reply
  • April 17, 2019 at 6:45 pm
    Permalink

    Hi

    What kind of periodic maintenance could we expect for this motor?

    Reply
    • April 18, 2019 at 9:02 am
      Permalink

      Hi Peter,

      The kind of periodic maintenance required depends on the use the bike would be getting. If you were using the bike for leisurely weekend rides, then I would check everything once a year. If the bike was being used as a daily commuter then it would be recommended to check everything every more regularly (at least once a month).

      The service life of the chain, gear cassette and rear derailleur can be reduced due to the extra power going through the drive-train – This increased wear can be mitigated with the use of a gearshift sensor.

      The motor itself may need tightening (in the bottom bracket) every few hundred miles using a Bafang lockring spanner.

      It is recommended to re-grease the motor internals every 3000 miles, I use Mobilgrease28 which is an aviation-grade grease that can prolong the life of the Bafang motor internals.

      There are other parts of the motor that can wear over time, including bearings and gears, but this seems less of a problem on the BBS01 250w due to the lower power output.

      I have just serviced a BBS01B 350w for a customer who has done in excess of 3000 miles, and all the internal gears were still in excellent condition.

      Out of all the Bafang motors I have installed the 250w has (so far) proven to be very reliable.

      If you have any more questions, please let me know.

      All the best,
      Tony

      Reply
  • May 15, 2019 at 12:22 am
    Permalink

    Hi Tony
    May I ask how much length is the bottom bracket of the full suspension B’twin in your last picture? I am thinking to put a Tongsheng TSDZ2 on it. I guess it should be 73mm square taper.

    Cheers
    Alex

    Reply
    • May 15, 2019 at 6:24 am
      Permalink

      Hi Alex,

      Yes, that’s correct, the B’TWIN Rockrider 540s has a standard 68-73mm square-tapered bottom bracket. The Bafang mid-drive fitted perfectly, so the TSDZ2 should also be a perfect fit.

      If you need any more help or advice, please let me know.

      All the best,
      Tony

      Reply
      • May 16, 2019 at 2:03 pm
        Permalink

        Value for Money

        10

        Ease of Installation

        10

        Reliability

        9

        Efficiency

        10

        Performance

        8.9

        Can you tell me if you could fit without problems the battery on the frame of Btwin 540s (because of the back suspension i’m worried battery won’t fit), and i heard 540s have 100mm bottom bracket, are you sure btwin 540s is ok for Bafang 68-73mm bottom bracket? Thanks a lot 🙂

        Reply
        • May 16, 2019 at 7:22 pm
          Permalink

          The Hailong Shark case battery (360mm x 90mm x 90mm) was difficult to fit. I converted two 540s bikes last year and the XL frame was tight and the L frame was very difficult. In order to get the battery to fit, I needed to remove the forward rear suspension mounting bolt and push the shock upwards. Another thing to consider is the 540s does not have any bottle holder holes. I had to drill two holes in the frame and use riv-nuts.

          The 540s in the photos definitely had a 68-73mm square-tapered BB. Apart from problems fitting the battery the Bafang motor fitted perfectly.

          If you have any more questions, please let me know.

          All the best,
          Tony

          Reply
          • May 17, 2019 at 10:24 am
            Permalink

            then i’m considering a b’twin 560 but i heard it has some small issues with mounting the bafang motor because of the frame …you know something about that?

            Thanks a lot for your help .

          • May 17, 2019 at 2:00 pm
            Permalink

            I couldn’t say for sure if a Bafang motor would fit the 560s as I have never converted one, but I believe it uses a Shimano Hollowtech II bottom bracket, which means the motor should fit as it would be 68-73mm x 33.5mm (outer diameter).

            If you have a Decathlon store near you, it would be worth seeing if they have one there, and take some vernier calipers to measure the width of the BB and the outer diameter of the bottom bracket.

            Regards,
            Tony

    • May 18, 2019 at 9:18 am
      Permalink

      I’ve just checked the photo and it is definitely a Hollowtech II type threaded bottom bracket. The Bafang motor should be a straightforward fit.

      I couldn’t quite see from the photo if it was 68mm or 73mm. If it’s 73mm you will need some spacers and longer bolts between the mounting plate and motor – I usually use a couple of 10mm nuts.

      Let me know if you need any more info.

      Reply
  • June 6, 2019 at 7:29 am
    Permalink

    Hi Tony,

    What a fantastic website.
    I’m wanting to convert my Voodoo canzo to electric with a bafang bbs01 250w motor.
    I was wondering if you’d done a conversion on one and what you thought,
    I’ve seen the hailong battery you recommend from unit power and was wondering if it was going to fit my downtube, it will be very close to rear shock.
    Thanks Richard

    Reply
    • June 6, 2019 at 10:59 am
      Permalink

      Hi Richard,

      Thanks for the good feedback, it’s much appreciated.

      I’ve never converted a Canzo, but I’ve done most of the Voodoo Hardtail MTB’s.

      Looking at the spec, the motor would definitely fit. My supplier do a battery that removes sideways. It is a little bit more compact than the standard Hailong case battery and is 36v14ah so it would have a fairly decent range. Here is the link for the side release battery.They also do a compact bottle battery that fits in a standard bottle cage.

      If you need any more info, please let me know.

      All the best,
      Tony

      Reply
  • June 6, 2019 at 5:36 pm
    Permalink

    Hi Tony,

    Thanks for the quick reply
    I’ll have a look at the links.

    Much appreciated
    Keep up the great work
    Hope we can get more folk out of there cars and onto ebikes.

    Richard

    Reply
  • June 7, 2019 at 8:37 am
    Permalink

    Dear Tony,

    Your review is very useful for me. I have ordered a BBS01 kit, and while waiting for it, I start looking for info such as your advice.

    The package would come with both a throttle and PAS sensor. Could and or should I use both? I use my bike to commute to work everyday in urban areas.

    Many thanks for your advice.

    Ninh.

    Reply
    • June 7, 2019 at 10:49 am
      Permalink

      Hi Ninh,

      The PAS sensor is an internal component of the motor and the throttle is a separate part that can be fitted if required.

      Throttles are fine to use on flat ground for short periods (if you want a break from pedalling) but can increase the load on the motor controller when used up hill especially when not much pedalling input is being used. Also, if you are using the throttle to get started, you will need to make sure you are in a low gear – the same as if you were on a motorcycle.

      Using the throttle and pedal assist together shouldn’t cause any problems as long as you remember the above information.

      My personal recommendation is unless you really need a throttle (for medical reasons), just stick with the pedal assist.

      I hope this information helps.

      All the best,
      Tony

      Reply
      • June 7, 2019 at 3:53 pm
        Permalink

        Many thanks,Tony, for your quick and helpful reply. Ninh.

        Reply
        • June 7, 2019 at 6:57 pm
          Permalink

          It’s my pleasure, glad to have been of some assistance.

          All the best,
          Tony

          Reply
  • June 9, 2019 at 12:01 pm
    Permalink

    Dear Tony,
    I have ordered a BBS01 36V, 350W and a Samsung Lithium Batterie 36V, 8.8mA, I think.
    Is the battery good for the motor. If needed I still have the possibility to modify the order. And, would Chinese made batteries be a better option?
    Thanks in advance for your advice.

    Reply
    • June 9, 2019 at 1:23 pm
      Permalink

      Hi Ninh,

      The battery will be fine for the BBS01 350w. If you are using a lot of power the range would be around 15 miles, using pedal assist in various modes should see the range increase to around 30 miles.

      If you need any more advice, let me know.
      Tony

      Reply
  • June 10, 2019 at 3:11 am
    Permalink

    Excellent, Tony. I only use it for going to and from work, about 4km in urban. Actually, I don’t need it, but somehow want to have it, own it. I know it is funny, but …

    Thanks and best regards.

    Ninh

    Reply
    • June 10, 2019 at 10:51 am
      Permalink

      The great thing about commuting by e-bike is that you can arrive at work feeling fresh and ready for the day.

      Happy commuting!

      Reply
  • June 11, 2019 at 8:17 am
    Permalink

    Dear Tony,

    it’s me again. My weight is 60 kg, and I will use the bike for commuting, like 4km per day in urban areas. Is there any difference between a 250W and a 350W. I have ordered the 350W one, but can still modify the order, I think.

    Also, I think you stated somewhere that one of the model produces heat in lower gear, but that could be re-programmed? This question might be too early for me to ask, since I have’nt seen any part of the product. But, you know, I am just curiuos, … like a child :).

    Thanks.

    Ninh.

    Reply
    • June 11, 2019 at 10:49 am
      Permalink

      Hi Ninh,

      The 250w and 350w are the same motor, but with slightly different controller programming. The 350w is set to 18 Amps and the 250w is 15 Amps.

      The possible heat issue related to starting the motor off pedalling in a high gear, which would increase the load on the motor. Try to think of it like riding a motorcycle or driving a car, you will need to be in the right gear for optimum performance – low gear for hill climbing and starting off and high gear for higher speeds.

      I hope this answers your questions.

      Regards,
      Tony

      Reply
  • June 11, 2019 at 1:07 pm
    Permalink

    Excellent. Always prompt, concise, and first of all very useful. Many thanks, Tony.

    Reply
  • July 23, 2019 at 12:44 pm
    Permalink

    Hi Tony, Your website here is the most informative on this motor that I could find – thanks for making it. I have a few questions if you don’t mind.

    Can you suggest 2 or 3 bikes that convert easily and work well (especially up hills), since you have converted so many? e.g. Ridgeback Speed, or Carrera Crossfire 2, or Trek etc.

    Would you suggest the 44t ring for a 1 mile 6 degree hill?

    Also, as you mentioned above that the 250 motor is the same one as the 350 except for programmed amps, is it possible to re-programme or overvolt the 250 in that case?

    Many thanks, Tom

    Reply
    • July 23, 2019 at 2:59 pm
      Permalink

      Hi Tom,

      I have converted quite a few Carrera Crossfire’s, in fact I did one only last week and it was a very straightforward conversion. The Ridgeback Speed is also a straightforward bike to convert. If you were using the bike on the road I would go for something like the Ridgeback as it’s lighter than the Crossfire to start with. If you need a bike for all terrain riding the Crossfire will do the job, but it would also be worth considering the Decathlon B’TWIN Riverside 900 it has a better spec than the Crossfire 2 for about £20 more.

      Regarding gearing, a 44t should be okay with the e-assist, It’s very hilly where I live, so I used to have a 36t Lekkie Bling ring on the front.

      If you have the Bafang programming lead and software it is very straightforward to increase the current on the 250w from 15A to 18A but you wouldn’t be able to change the voltage.

      Let me know if you have any more questions.

      Cheers,
      Tony

      Reply
